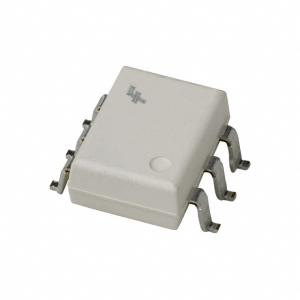

MOC3063SR2M 6-PIN DIP ZERO-CROSS PHOTOTRIAC DRIVER OPTOCOUPLER (600V PEAK) common ic chips digital ic circuits

  • 1
  • 2

Brand Name : FAIRCHILD

Model Number : MOC3063SR2M

Certification : Original Factory Pack

Place of Origin : Original

MOQ : 5pcs

Price : Negotiation

Payment Terms : T/T, Western Union,PayPal

Supply Ability : 290PCS

Delivery Time : 1 Day

Packaging Details : please contact me for details

Description : Optoisolator Triac Output 4170Vrms 1 Channel 6-SMD

TSTG All : -40 to +150 °C

TOPR All : -40 to +85 °C

TSOL All : 260 for 10 sec °C

TJ All : -40 to +100 °C

VISO All : 7500 Vac(pk)

Contact Now

6-PIN DIP ZERO-CROSS PHOTOTRIAC DRIVER OPTOCOUPLER (600V PEAK)

FEATURES

• Simplifies logic control of 115/240 VAC power

• Zero voltage crossing

• dv/dt of 1000 V/µs guaranteed (MOC316X-M),

– 600 V/ms guaranteed (MOC306X-M)

• VDE recognized (File # 94766)

– ordering option V (e.g., MOC3063V-M)

• Underwriters Laboratories (UL) recognized

(File #E90700, volume 2)

APPLICATIONS

• Solenoid/valve controls

• Static power switches

• Temperature controls

• AC motor starters

• Lighting controls

• AC motor drives

• E.M. contactors

• Solid state relays

DESCRIPTION

The MOC306X-M and MOC316X-M devices consist of a GaAs infrared emitting diode optically coupled to a monolithic silicon detector performing the function of a zero voltage crossing bilateral triac driver. They are designed for use with a triac in the interface of logic systems to equipment powered from 115/240 VAC lines, such as solid-state relays, industrial controls, motors, solenoids and consumer appliances, etc.

STOCK LIST

A393F 1000 ST 10+ SOP-8
LTC1645CS 5758 LT 16+ SOP
PT150S16 200 NIEC 08+ MODULE
MCC501-14I01 786 IXYS 14+ IGBT
MAX1472AKA 5350 MAXIM 16+ SOT
SAP15P/SAP15N 2500 SANKEN 15+ TO-3P
MC14011BCL 3058 MOT 16+ DIP
MK41T56N 9800 ST 16+ DIP
LM361N 3284 NSC 13+ DIP-14
BFY81 12020 APT 06+ CAN6
MC1488L 9929 MOT 16+ DIP
M61530FP 3191 MIT 15+ SSOP
MAX17015AETP 6400 MAXIM 16+ QFN
OZ2532SN 8380 MICRON 16+ SSOP
LTC4412ES6 6298 LINEAR 16+ SOT
OZ811LN 8400 MICRON 16+ QFN
MAX872CSA 9200 MAXIM 16+ SOP
NE3508M04-T2-A 17040 NEC 16+ SOT-343
L6203 2762 ST 16+ ZIP
MG75J1BS11 620 TOSHIBA 15+ MODULE
MJL21193+MJL21194 9200 ON 15+ TO-3PL
35080 3010 ST 10+ SOP-8
LM741CH 538 NSC 13+ CAN-8
MC14504BDT 4575 ON 16+ TSSOP
MAX3232CDBR 11000 TI 15+ SSOP
